100% Original Lattice Girder Pallet Mould Cleaning Machine - Release component &spraying machine – Xindadi Detail:

Equipment function

Spraying machine is equipment for spraying release agent. Its function is to spray release agent evenly and quickly on the surface of the pallet, which is conducive to the separation of concrete component and pallet.

Equipment feature

n The spraying machine is controlled by an automatic control system, which can realize spraying in different areas according to requirements and achieve flexible control.

n The operation is simple, economical and durable.

Compact structure and save space.

Equipment composation

n Equipment rack

n Swing device

n Collection box

n Hydraulic system

n Digital control system

The main technical parameters

Pressure drive motor power         1.5 kW

Swing speed of swing motor   71 r/min

Swing motor power             0.55 kW

Spray range of release agent      4 m

Nozzle flow                 4×0.75 L/min

Volume of release agent box     240 L

Swing angle                 0~60°

Total power                   2.1Kw

Total weight       about1400kg

Note : spraying machine is for the pallet width of 4m, the roller height is 400mm, and the pallet height is 290mm. The equipment can be customized according to the width of the pallet, the height of the roller and the thickness of the pallet.

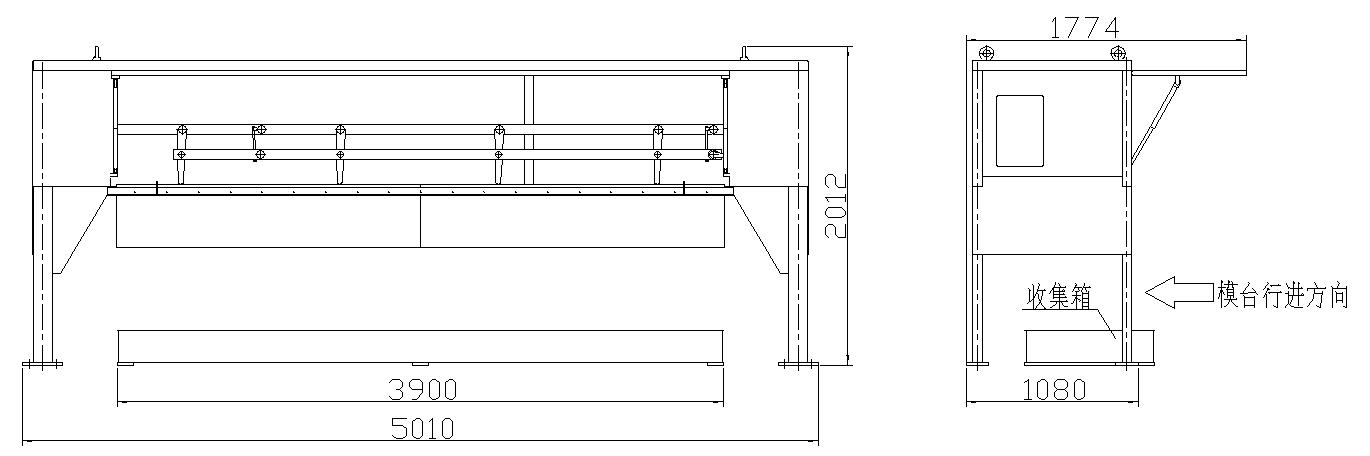

Release component &spraying machine2


Product detail pictures:

100% Original Lattice Girder Pallet Mould Cleaning Machine - Release component &spraying machine – Xindadi detail pictures
